Why Doesn’t This Wire Go To The Battery?
The 12-volt electrical system is usually one of the first systems a boat owner becomes familiar with.
The battery, its isolator, the main fuse, switch panels, lights and pumps no longer feel like a collection of random wires running through lockers and behind panels.
You can trace a circuit from the positive terminal of the battery, through the equipment and eventually back to the negative terminal again. If a light stops working or a water pump refuses to run, you have a reasonable idea where to start looking.
But not everything on a boat works like that.
Perhaps you find a wire attached to a seacock.
Or perhaps you follow that wire and discover it joins several others on a bolt that passes through the hull to an anode outside the boat.
Or perhaps you’ve noticed that this year’s anode has worn very differently from last year’s.
At first glance they seem like completely different problems. One appears to involve wiring, another corrosion, and a third looks like routine maintenance.
They’re actually different parts of the same story.
It’s natural to assume that if something has a wire attached to it, it must be part of the boat’s 12-volt electrical system.
In many cases, however, it isn’t.
Instead, you’ve discovered a completely different system that also uses wires and metal connections, but is doing a completely different job.
It’s the sort of everyday mystery the Understand Your Boat series explores.
Once you understand that system, those little mysteries start making sense.
Where’s The Second Wire?
Think about a typical piece of electrical equipment—a cabin light, a water pump, a USB socket or an instrument.
They all have two wires.
One brings electrical power from the battery.
The other carries it back again.
Without both wires, the equipment simply won’t work.

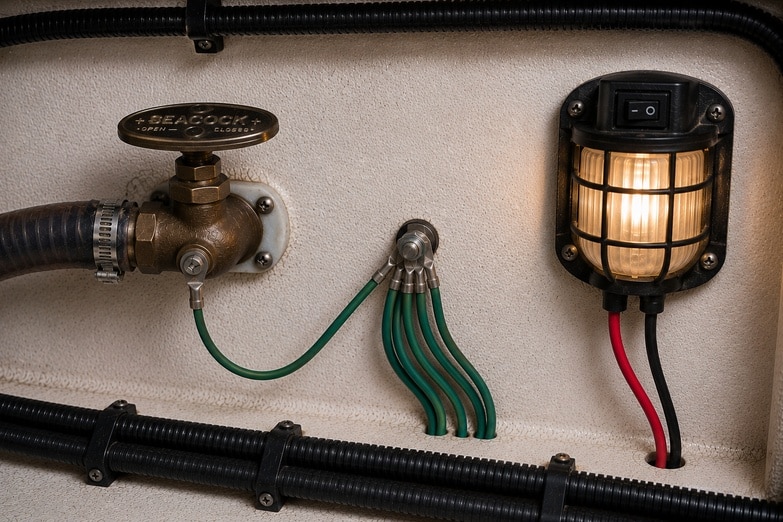

Then you open a locker and find a single wire attached to a seacock.
At first glance, it doesn’t seem to make sense.
The seacock doesn’t need electricity.
It isn’t a motor.
It isn’t a light.
It isn’t something that switches on and off.
So why is there a wire attached to it?
The wire isn’t there to supply power.
It’s making an electrical connection to the metal seacock itself.
That’s all.
The seacock doesn’t need two wires because nothing is trying to make it work. Nothing is being powered.
The wire is there for an entirely different reason.
What Does An Anode Actually Do?
Most boat owners have seen an anode, whether they’ve replaced one during a lift-out or noticed that every year a lump of metal seems to disappear from underneath the boat.
You may have heard people talking about galvanic corrosion, electrolytes, dissimilar metals and all sorts of other scientific-sounding terms.
How anodes work is complicated. Understanding your own boat doesn’t require understanding all of the science.
To understand your own boat, it’s enough to understand what the system is trying to achieve.
Most metals corrode, and boats spend their lives in damp conditions, often surrounded by water and sometimes exposed to salt. Those two facts are not always a happy combination.
In simple terms, the environment is constantly trying to eat away at the metal parts of the boat. That matters because many of the things we rely on are made from metal.
On one boat that might mean a propeller, shaft and several seacocks; on another it may include the hull itself.
Not all metals corrode at the same rate, which allows us to use one metal to protect another.
Instead of allowing an expensive propeller, seacock, rudder fitting or hull to corrode first, we deliberately install a cheaper piece of metal whose job is to corrode instead.
That piece of metal is the anode. In fact, sacrificial anode is a much better description because sacrificing itself is the reason it was designed in the first place.
If your anode looks rough, pitted or partly consumed, it’s often doing what it was meant to.
That raises another question.
If your boat has six metal seacocks, a propeller shaft, rudder fittings and perhaps even a steel hull…
…why don’t you need an anode attached to every one of them?
Why Are All These Things Connected Together?
Up to this point we’ve looked at the individual parts of the system.
The next question is how they all work together.
The answer is that the parts you want to protect are electrically connected to the anode. How that connection is made depends on the boat.
The process of electrically connecting those metal components together is known as bonding. The wires, bus bars or studs used to make those connections form the boat’s bonding system.
If you hear people discussing this subject, or look it up online, don’t be surprised if you come across slightly different terminology. British English and American English don’t always use exactly the same words, so you’ll sometimes see terms such as bonding and grounding used a little differently. That can make it sound as though people are talking about different systems. Often they aren’t. The terminology matters much less than understanding how the system works, so that’s what we’ll concentrate on in this article.
On many GRP boats you’ll find bonding wires linking metal fittings together, while on many steel boats the hull itself provides much of that electrical connection because it is already one large piece of metal.
Some boats use a mixture of both.
The principle is exactly the same.
The metal that needs protecting is electrically connected to the sacrificial anode.
Unlike the 12-volt electrical system, this one isn’t powered by the battery. Nothing is being switched on. Nothing is being driven by the alternator.
Instead, tiny electrical voltages are generated naturally whenever different metals are connected together and immersed in water.
Those voltages are incredibly small—often only thousandths of a volt—but over months and years they’re enough to cause corrosion. The bonding system doesn’t create them; it provides a controlled path so that the sacrificial anode corrodes instead of the expensive parts of the boat.
Trace one of these wires and you’ll usually discover one of several different arrangements.
On some boats they all meet at a bonding bus bar—a simple metal strip with plenty of connection points. This isn’t a positive or negative bus bar. It’s a convenient place to join together the metal parts that form the corrosion protection system. Although the name is similar, it performs a completely different job from the positive and negative bus bars used in a boat’s 12-volt electrical system.
On other boats you may find several ring terminals stacked together on a single bolt or stud.
You may also find one fitting connected to another in a daisy chain before eventually reaching a common bonding point or the bolt that secures the anode to the hull.
The daisy-chain arrangement raises another question. After all, if the wire ends at one fitting, how does the electrical connection continue to the next?
Electrical connections don’t always continue through another length of wire. Sometimes they continue through the metal itself.
A familiar example is the engine.
On many boats you’ll find a thick cable bolted to the engine block. When the starter motor is cranking the engine, all of the current flowing through the thick positive cable has to get back to the battery again. Instead of running another equally long cable all the way back, the engine block itself carries the current for most of the journey. A heavy negative cable is still needed between the engine block and the battery, but because the engine block has already replaced most of that cable, it can be much shorter.
The engine block has become part of the electrical path.
Bonding systems often work in the same way. Sometimes the electrical connection continues through another wire. Sometimes it continues through the metal itself.
Suppose, for example, you replace a bronze seacock with a modern composite one.
The old seacock may have had a bonding wire attached to it. The new one won’t. Have you simply removed an unnecessary wire, or have you accidentally disconnected something else that still needs protecting?
That’s one of the reasons it’s worth understanding the system before changing it.
Sometimes a bonding wire exists only to connect the fitting you’ve removed, in which case it can go with it. On another boat, however, that same fitting may also form part of the route that connects other metal components back to the anode.
If you remove it without understanding the wiring, you may leave those other components disconnected from the corrosion protection system.
That doesn’t mean you should avoid fitting composite seacocks.
Far from it. It means that whenever you change one part of the system, it’s worth taking a few extra minutes to understand what else, if anything, was connected through it.
If you keep following the connections, you’ll usually end up at the anode. At that point, the whole picture starts to make sense.
The mystery wire was never really about the seacock.
It was about making the seacock—and perhaps several other metal fittings—part of the system the anode is protecting.
That’s why it’s always worth understanding where a mystery wire goes before deciding it can safely be removed.
Sometimes it will be an abandoned wire left behind by a previous owner.
Sometimes it will be an important part of the boat’s corrosion protection system.
The only reliable way to know is to follow it and understand what it’s connected to.
Is My Anode Working Properly?
One of the most common questions boat owners ask is whether their sacrificial anodes are wearing at the correct rate.
Unfortunately, there isn’t a simple answer. An anode that disappears quickly isn’t automatically a problem, and one that hardly wears at all isn’t automatically good news either.
If your anode behaves differently from last year, one of three things has usually changed.
The environment.
The system.
Or the installation.
Those three possibilities provide a much more useful way of thinking about the problem than trying to decide whether an anode has worn “too much” or “too little”.
The Environment
The corrosion protection system doesn’t exist in isolation. It’s constantly interacting with the water around the boat.
The science behind this involves galvanic currents, water chemistry, electrolytes and shore power earth systems.
For most boat owners, however, the important point is much simpler: if the environment changes, the way the anode behaves may change as well.
Perhaps the boat has moved to a different marina, where it’s exposed to different conditions.
Perhaps it is spending more time connected to shore power than it used to.
Perhaps it has spent much longer in the water this season than last. An anode that’s underwater for twice as long has twice as long to do its job.
Perhaps the boats around you have changed. Your boat doesn’t exist in isolation and changes nearby can sometimes alter the environment it sits in.
None of these automatically indicates a fault. They help explain why an anode may not wear at the same rate every year.
The System
It’s also worth remembering that the anode only protects the parts of the boat connected to it. If those parts change, the way the anode behaves may change too.
Think of the anode as the metal that’s there to take the damage instead of everything else.
If it’s protecting three metal components, you might expect it to behave differently than if it’s protecting ten.
Perhaps several metal seacocks have been replaced with composite ones, a metal water tank has been removed, new underwater equipment has been fitted or part of the bonding system has been altered during maintenance.
The important point isn’t what changed. It’s recognising that if the amount of metal being protected changes, or the way those components are connected together changes, the anode may naturally wear at a different rate.
Again, that doesn’t automatically mean something is wrong. It simply means the system is no longer exactly the same as it was last season.
The Installation
Regardless of what you think may have changed, it’s worth understanding the installation itself. It’s easy to settle on one explanation before the rest of the system has been checked.
Before reaching for a multimeter, though, it helps to remember what an anode actually needs in order to work.
It needs to be electrically connected to the parts it is protecting, and it needs to be exposed to the water. Those two simple ideas explain many of the problems owners encounter.
If an anode has been painted, covered in heavy marine growth or isolated from the water in some other way, it may struggle to do its job properly.
Likewise, if a bonding wire has broken, a terminal has come loose or corrosion has developed inside a connection, the anode may no longer be connected to everything it is supposed to protect.
The first step is usually a careful visual inspection.
Follow the connections.
Check that wires haven’t been damaged.
Make sure terminals are still secure.
Look for corrosion where the wires are connected or signs that previous owners have altered the system.
If your boat has a bonding bus bar or common bonding stud, make sure all the connections appear clean and secure.
Not every boat connects each fitting directly back to the anode.
Some do.
Others connect fittings together before eventually reaching the common bonding point.
If your boat uses the daisy-chain arrangement shown earlier, one poor connection can affect several pieces of equipment. Imagine three seacocks connected together in the same daisy chain described earlier. If the connection nearest the common bonding point or anode fails, all three seacocks may lose their protection.
It’s a little like the old Christmas tree fairy lights, where one failed bulb could stop an entire section from working.
That doesn’t make the arrangement wrong. It simply means it’s worth understanding how your own boat is connected.
If every fitting has its own individual connection back to the common bonding point, one fault may affect only one fitting. If several fittings share the same route back to the anode, a single poor connection could affect them all.
If you own a multimeter, you can check for continuity between the fitting you want to protect and the bonding point or anode connection.
If you don’t own a meter, or aren’t completely confident using one, don’t worry. A careful inspection of the wiring and connections will often reveal the most common faults.
The goal isn’t to achieve a particular amount of anode wear.
The goal is to make sure the anode remains electrically connected to the parts you want to protect and remains exposed to the water so that it can do its job.
A Final Thought
The mystery wire on the seacock, the bonding system and the sacrificial anode are different parts of the same story.
The exact arrangement varies from boat to boat, and GRP, steel and aluminium boats all achieve the same goal in slightly different ways.
Some systems use bonding wires, some make use of the hull itself, and some fittings may even be connected as part of a lightning protection system rather than the corrosion protection system.
The details differ, but the principles are remarkably consistent.
Some boats have extensive bonding systems. Others have very little bonding, and some have none at all. That’s perfectly normal. Different designers and manufacturers have taken different approaches over the years, and the right arrangement depends on the boat and what it’s made from.
This article isn’t trying to persuade you to add or remove bonding. If your boat has a bonding system that’s working well, don’t be in a hurry to change it because you’ve come across a different opinion elsewhere. Equally, if your boat has never been bonded, don’t assume you should start adding wires. Understanding how your own boat has been designed should always come before changing it.
When you discover a wire attached to something unexpected, resist the temptation to remove it because it doesn’t appear to belong.
Follow it.
Understand what system it is part of.
Only then decide whether it is still needed.
